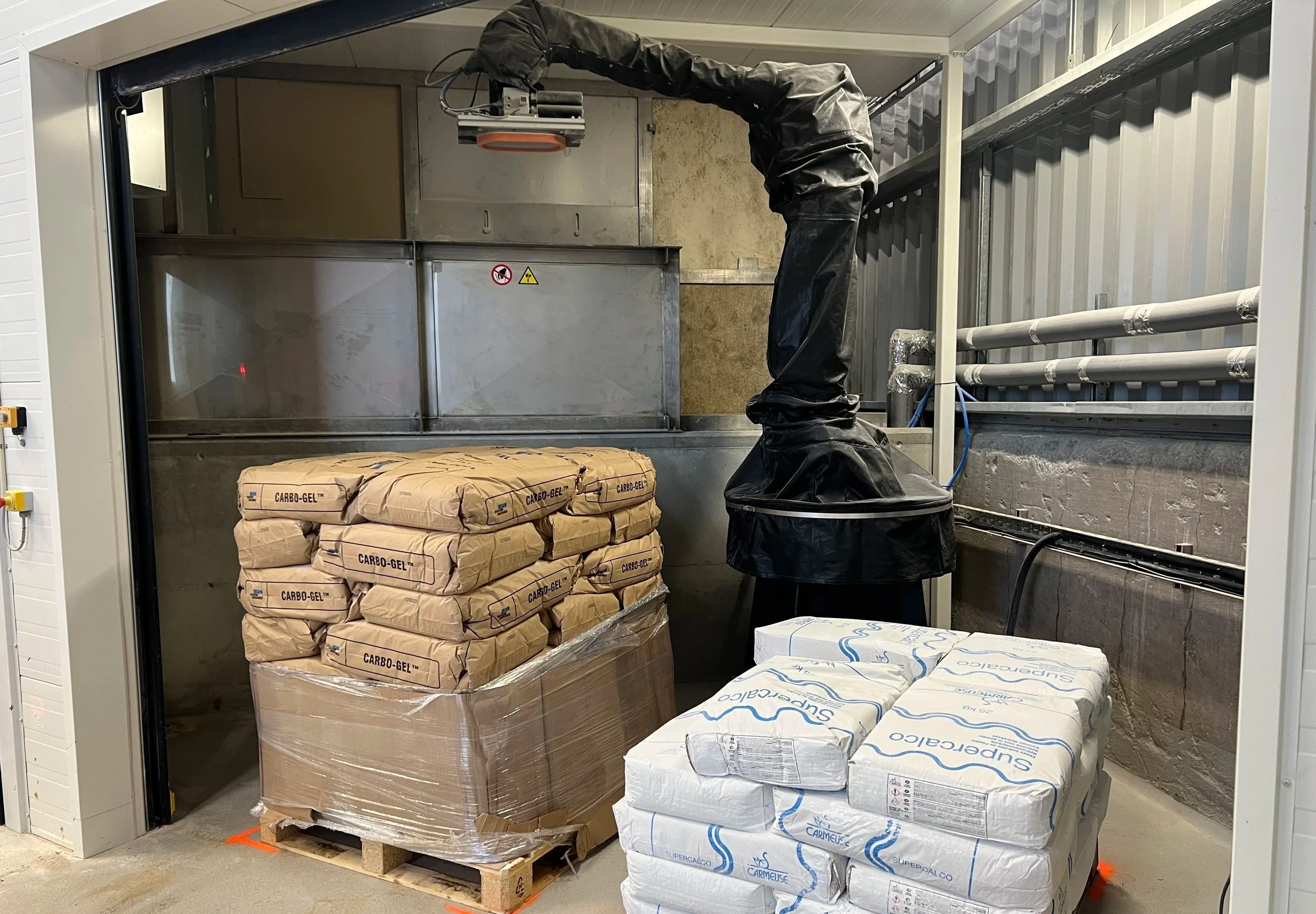

Automated Sack Handling System
Ensure safe, efficient and optimized handling of sacks. Intelligent components work together to provide effortless transfer of sacks from storage pallets to the unloading area.
Safety first
Avoid heavy and repeating manual handling and lower the risks of injuries. The system can safely handle payloads up to 25 kg, minimizing the need for humans in demanding environments or in proximity of unhealthy materials.
3D-Vision capabilities
Fanuc IR Vision allows the robot to detect and pick sacks from any positions in the most efficient order.
| Specification | Description* |
|---|---|
| Payload capacity | 25 kg |
| Robot | Fanuc M-710-iC/45L (or according to configuration) |
| Vision system | Fanuc 3DV/1600 |
| Gripper principle | Vacuum |
| Gripper type | Coval CSGS4X25X60 |
| Logic controller | Beckhoff |
| Number of controllable axes | 6 |
| Repeatability | ±0.06 mm |
| Total weight | 590 kg (pedestal not included) |
| Supply voltage | 50/60 Hz 3 ph. 230V |
| Typical power consumption | 2.5 – 3.0 kW |
| Air consumption | 720 l/min @ 4 bar 1008 l/min @ 6 bar |
*Example from previous project - contact us to discuss your needs
